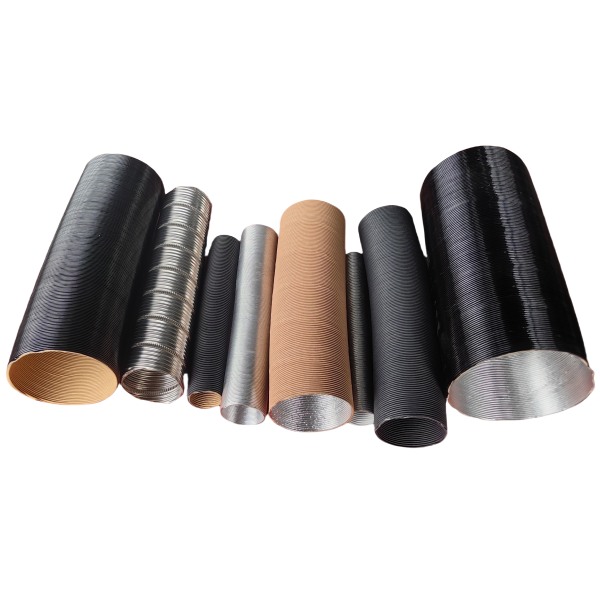

In modern heating and combustion systems, the combustion air pipe is a critical component designed to draw fresh air from outside the system and supply oxygen directly to the combustion process.

In a sealed exhaust configuration, the combustion air pipe operates as part of the exhaust system’s external air path, ensuring that combustion air is completely separated from the internal air environment.

Independent Fresh Air Supply for Combustion

The primary function of the combustion air pipe is to transport fresh air from outside directly into the heater or combustion chamber. This air is used exclusively for the combustion process, providing the oxygen required for efficient and stable operation.

Fresh air is introduced through the external section of the exhaust system and delivered to the smoke extractor or combustion air inlet. As a result, the combustion process remains fully independent of the air inside the vehicle or enclosed space.

Direct Airflow from Exhaust Side to Combustion Zone

In sealed systems, the combustion air pipe allows fresh air to enter the smoke extractor directly from the exhaust side of the heater. This design ensures:

• No interaction with interior air circulation

• Stable and predictable combustion conditions

• Reduced risk of oxygen depletion in enclosed spaces

• Improved operational safety

By maintaining a dedicated airflow path, the combustion air pipe supports consistent combustion performance under varying operating conditions.

Advantages of a Separated Combustion Air System

Using a combustion air pipe that is completely isolated from the internal air system offers several technical advantages:

• Enhanced safety for vehicle and enclosed-space applications

• Compliance with sealed combustion system requirements

• Reduced influence of internal pressure changes

• Improved combustion efficiency and stability

This configuration is particularly important in mobile and compact installations where interior air quality must be preserved.

Design Considerations for Combustion Air Pipes

To ensure reliable operation, combustion air pipes are typically designed with:

• Airtight construction to prevent leakage

• Smooth internal surfaces for efficient airflow

• Materials suitable for outdoor exposure

• Flexible or rigid configurations depending on installation constraints

Proper design and material selection directly affect the performance and durability of the combustion air system.

Applications in Heating and Combustion Equipment

Combustion air pipes are commonly used in:

• Combi heaters

• Vehicle heating systems

• Industrial and commercial heaters

• Sealed combustion appliances

In these applications, the combustion air pipe enables a safe and independent combustion air supply, supporting both performance and regulatory compliance.

Engineering Support and Manufacturing Capability

As a manufacturer of combustion air system components, APK provides combustion air pipes engineered to meet specific system requirements. Custom designs are available to accommodate different airflow demands, installation layouts, and operating environments.

The combustion air pipe plays a vital role in sealed exhaust systems by ensuring that fresh air for combustion is drawn directly from outside and remains fully independent of the internal air environment. This design principle contributes to safer operation, stable combustion, and improved system reliability.
